Cement mixer trailer.Mix on your terms.
Mix concrete on site, around your schedule. Our cement mixer trailers combine Honda power, hydraulic drum drive and a choice of standard or self-loading configurations. Choose 1.5m³ or 2m³ mixed capacity to suit your work.
Talk to our Perth team: (08) 6189 3522
Small pours.
More control.
Our mobile concrete mixer trailer is designed for smaller pours, staged work and sites where ready-mix delivery is difficult or uneconomical. Bring your materials to site, batch what the job requires and mix when you are ready to pour.

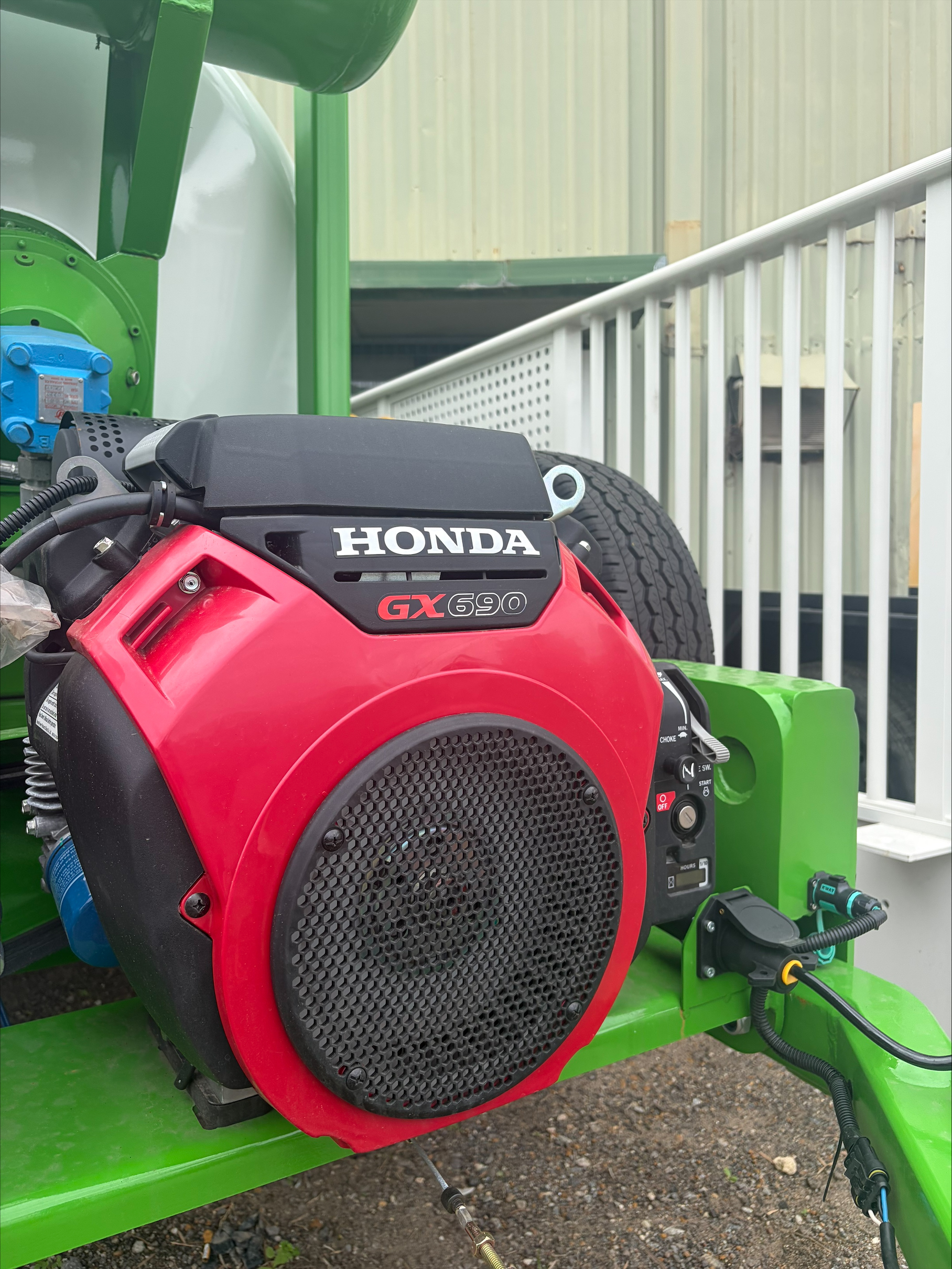

A Honda GX690 petrol engine powers the hydraulic drum drive. Twin internal helical blades mix the batch, and reversing the drum discharges through the chute. An onboard pressurised water system and hose reel support batching and wash-down.
Mix what the job needs
Choose a 1.5m³ or 2m³ rated mixed batch capacity for on-site work. Match production to smaller pours and staged work, helping reduce dependence on ready-mix delivery schedules and minimum-load charges.
Choose your loading setup
Add the SL model’s hydraulic conveyor to feed materials into the drum. Already have loading equipment? Choose the standard cement mixer trailer for use with a loader bucket, bag splitter or batch plant.
Bring mixing to the work
A trailer-mounted design suits rural properties, landscaping projects and construction sites. Set up on firm, level ground with suitable access for loading and discharge.
1.5m³ or 2m³.
Which suits your work?
Choose the batch capacity first, then select standard loading or an integrated hydraulic conveyor. Both sizes use Honda GX690 power and hydraulic drum drive.
1.5m³ cement mixer trailer
Produce up to 1.5m³ of mixed concrete per batch. The narrower body and lower nominal tare make this the smaller option in the two-model range.
- 1.5m³ mixed capacity / 2.7m³ drum volume
- 1,750mm overall width
- 1,750kg standard / 2,000kg SL nominal tare
- Standard and self-loading options
- 120 L pressurised water tank
2m³ cement mixer trailer
Produce up to 2m³ per batch — 0.5m³ more than the 1.5m³ option. A larger drum provides the additional capacity for jobs that need more concrete in each on-site batch.
- 2m³ mixed capacity / 3.6m³ drum volume
- 1,900mm overall width
- 2,050kg standard / 2,300kg SL nominal tare
- Standard and self-loading options
- 120 L pressurised water tank
Standard loading
Charge the drum using a loader bucket, bag splitter or batch plant. Suits operators with an existing material-loading setup.
Self-loading cement mixer trailers (SL)
A hydraulic conveyor feeds materials into the drum. Raise, lower and run the conveyor from the ground-level control station. If you are looking for a self-loading concrete trailer for on-site batching, compare the SL configurations in both capacities.
Compare cement mixer trailer specifications
Compare the two capacities below. Standard and self-loading (SL) dimensions and masses are shown separately where they differ.
| Specification | 1.5m³ · CM-1500 / SL | 2m³ · CM-2000 / SL |
|---|---|---|
| Rated mixed capacity | 1.5m³ per batch | 2m³ per batch |
| Geometric drum volume | 2.7m³ | 3.6m³ |
| Engine | Honda GX690 V-twin petrol | Honda GX690 V-twin petrol |
| Displacement / output | 688cc / 16.5kW gross at 3,600rpm | 688cc / 16.5kW gross at 3,600rpm |
| Starting | 12V electric start | 12V electric start |
| Drum drive | Hydraulic motor and planetary gearbox | Hydraulic motor and planetary gearbox |
| Drum construction | Q345B steel / 4mm shell | Q345B steel / 4mm shell |
| Mixing blades | Twin internal helical blades | Twin internal helical blades |
| Drum diameter | 1,350mm nominal | 1,500mm nominal |
| Drum inclination | 15° | 15° |
| Loading options | Standard: loader, bag splitter or batch plant. SL: hydraulic conveyor. | Standard: loader, bag splitter or batch plant. SL: hydraulic conveyor. |
| Water tank | 120 L pressurised tank | 120 L pressurised tank |
| Wash-down | Hose reel and trigger spray gun | Hose reel and trigger spray gun |
| Running gear | Tandem axles, leaf sprung | Tri axles, leaf sprung |

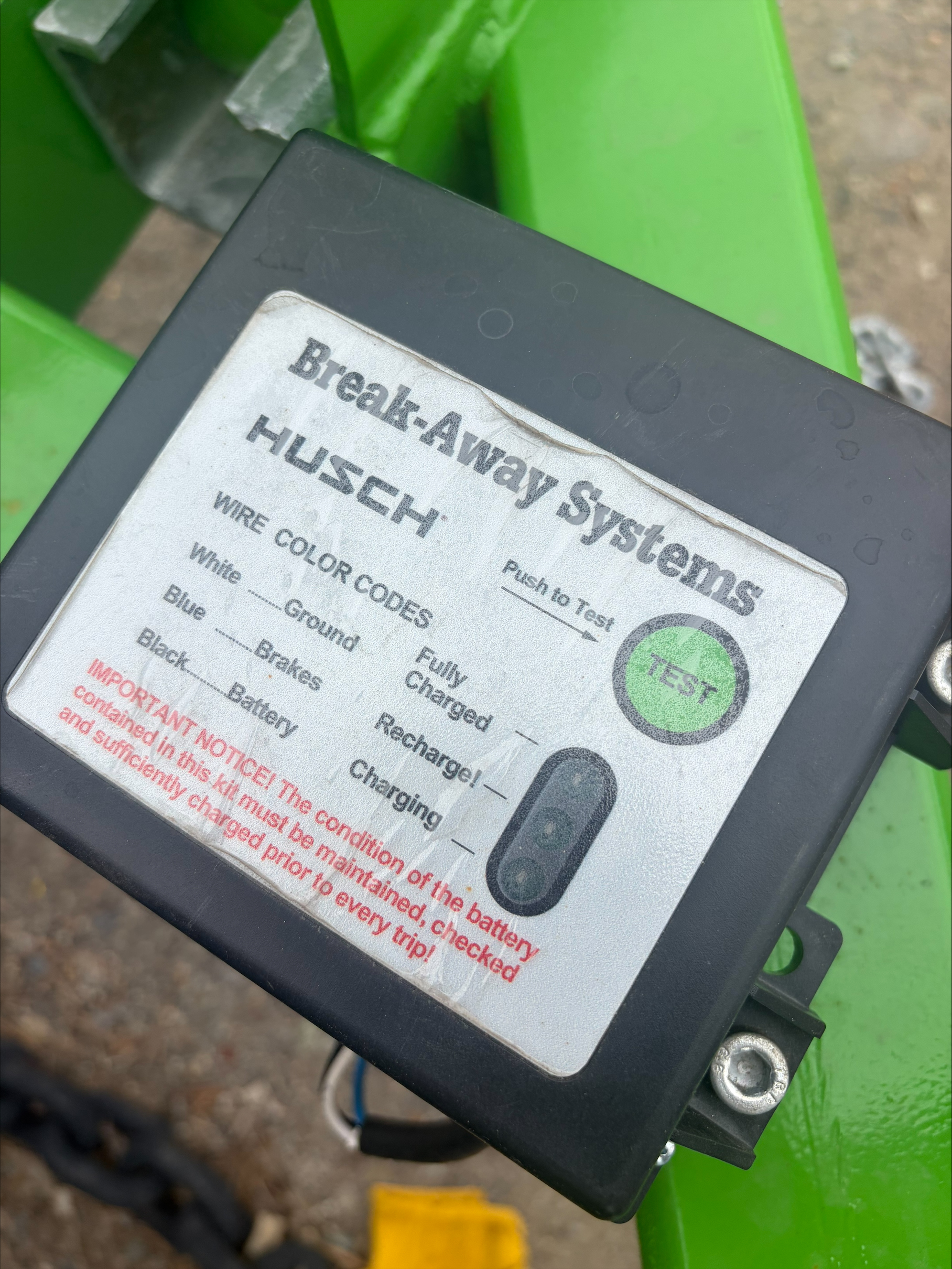

| Brakes | Electric brakes on all wheels, breakaway unit | Electric brakes on all wheels, breakaway unit |
| Tyres | 215/75 R16C | 215/75 R16C |
| Overall width | 1,750mm | 1,900mm |
| Standard: length × height | 5,150 × 2,050mm | 5,400 × 2,200mm |
| SL: length × height | 5,400 × 2,150mm, conveyor lowered | 5,700 × 2,300mm, conveyor lowered |
| Standard: nominal tare | 1,750kg | 2,050kg |
| SL: nominal tare | 2,000kg | 2,300kg |
| Nominal ATM | 4,500kg; confirm individual plate | 4,500kg; confirm individual plate |
| RMF warranty | 12 months against defects, subject to terms | 12 months against defects, subject to terms |
On a small screen, swipe across the table to compare both models. Specifications, dimensions and masses are nominal and may vary with options or custom builds. Confirm the supplied machine’s details with RMF Equipment; its identification and compliance plates govern applicable ratings. Proprietary components have their own manufacturers’ warranty terms.
From the backyard
to the back paddock.
Landscaping
Garden edging, pathways, fence posts and small pours. Mix as each stage is ready.
Building & formwork
Smaller pours, repairs and staged projects. Structural or specified-strength concrete must meet the project’s batching and testing requirements.
Farms & rural work
Property maintenance, post installations and smaller site works where delivery distances make small jobs difficult.
Equipment hire
A mixing option for customers undertaking smaller pours and remote work. Ask about configuration, handover and operator documentation.
Limestone Walls
Don’t wait for concrete deliveries anymore, mix on site and do your concrete, your way.
Kirbing
Quicker, more efficient and much more cost effective in the long run
Remote concrete delivery
New business oppurtunity for your own remote coincrete delivery service with our otwable aggie trailers.
Civil works & infrastructure repairs
Batch concrete on site for drainage repairs, bollard footings and signpost foundations. A cement mixer trailer suits smaller pours across civil works projects in Australia.
Cement mixer trailers.
The working details.

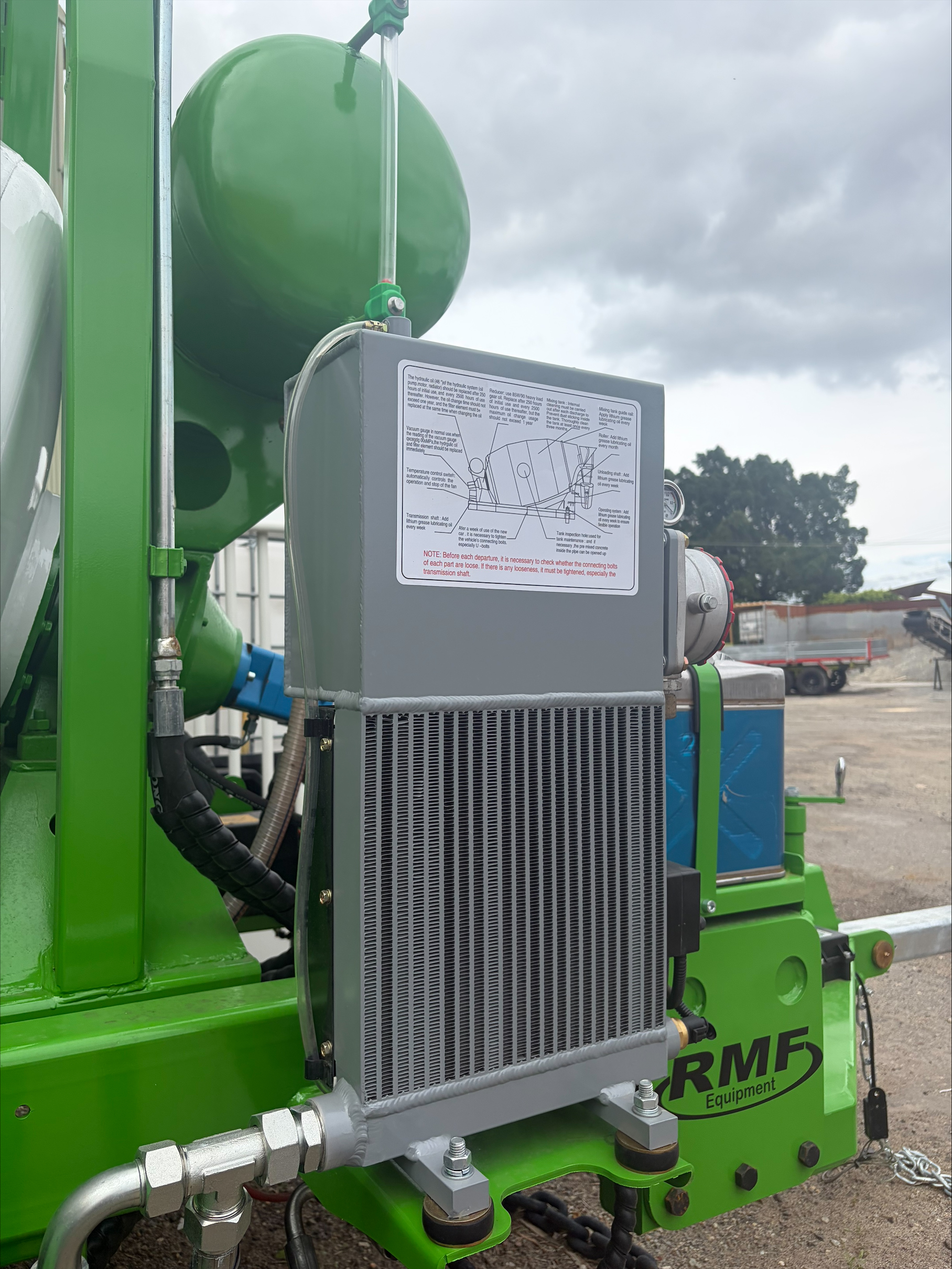

Explore the engine, running gear, hydraulic cooler and wash-down equipment. Select a photograph for a closer view.
Photographs show example equipment. Compare the model specifications and confirm the configuration supplied with your quote.
Your questions.
Answered.
Need help choosing a cement mixer trailer? Talk it through with our team in Maddington.
Which cement mixer trailer capacities are available?
Choose the CM-1500 with a rated mixed capacity of 1.5m³ or the CM-2000 with 2m³. Both are available in standard and self-loading (SL) configurations.
What is the difference between the 1.5m³ and 2m³ options?
The 2m³ option produces 0.5m³ more mixed concrete per batch and has a larger drum, wider body and higher nominal tare. Both use the Honda GX690 engine and hydraulic drum drive. Compare dimensions and masses in the table above.
What does self-loading mean?
The SL configuration includes a hydraulic conveyor that feeds materials into the drum. The standard configuration is charged using a loader bucket, bag splitter or batch plant.
Does the cement mixer trailer need mains power?
The listed standard builds use an onboard Honda GX690 petrol engine to drive the hydraulic system, so mains power is not required to operate the drum.
Can I tow with a full batch?
The full 1.5m³ or 2m³ mixed batch is for on-site work. Do not assume either full batch can be transported on a public road. Confirm actual loaded mass, plated ratings and the limits of your complete towing setup.
What water tank is fitted?

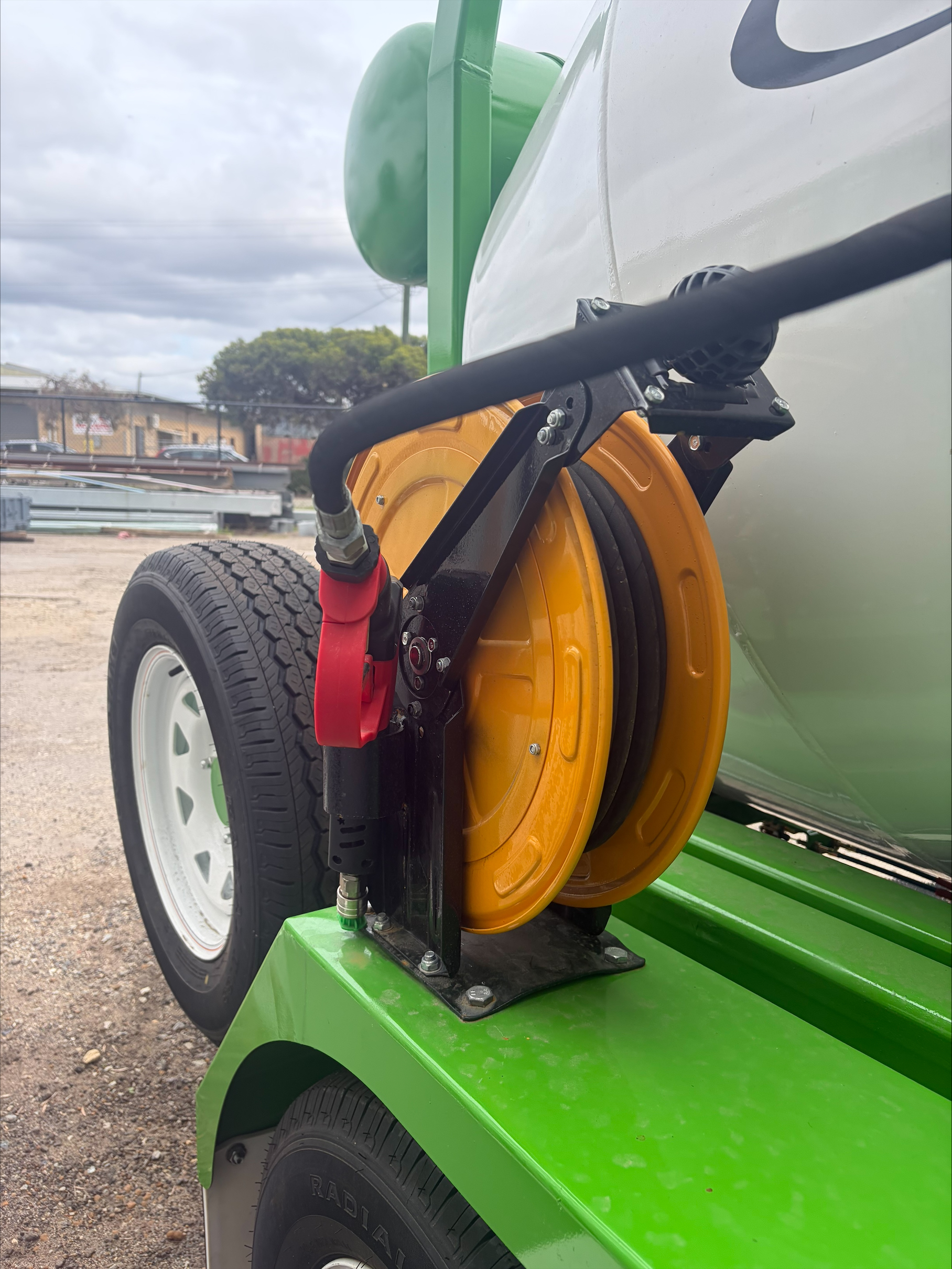

The listed configurations have a 120 L pressurised water tank, plus a hose reel and trigger spray gun for wash-down.
Can I use the cement mixer trailer for structural concrete?
The machine does not itself guarantee a concrete strength grade. Where specified-strength concrete is required, materials, batching accuracy, sampling and testing must satisfy the project’s requirements.
What warranty is included?
RMF provides a 12-month warranty against defects in materials and workmanship, subject to the supplied terms. Proprietary components have their own manufacturers’ warranties. The warranty is additional to your rights under the Australian Consumer Law.
Can I request pricing for both options?
Yes. Use the enquiry button below and tell us whether you want 1.5m³, 2m³ or pricing for both. You can also ask about hire, finance and a demonstration.
Want the product information pack?
Ask for the brochure, operator’s manual, quick start guide, safety instructions and warranty information for your cement mixer trailer.
Find the right cement mixer trailer for your work.
Tell us what you are pouring, where you will use the cement mixer trailer and how you plan to load it. We can help you compare models, discuss options and arrange a quote or demonstration.
